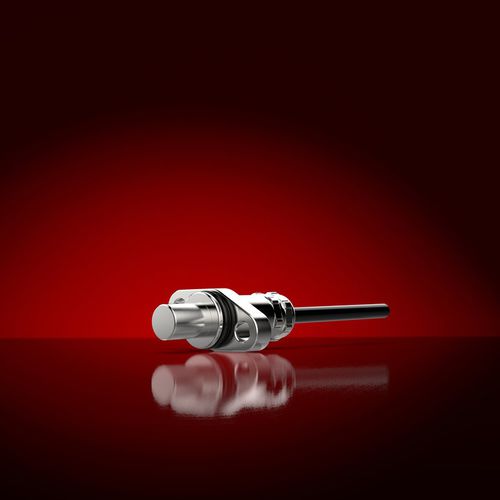

Rotational speed sensor GEL 2474magneticcompact
Add to favorites
Compare this product
Characteristics
- Type of movement
- rotational
- Technology
- magnetic
- Other characteristics
- compact
- Frequency
Max.: 25,000 Hz
Min.: 0 Hz
- Temperature range
Max.: 120 °C
(248 °F)Min.: -40 °C
(-40 °F)
Description
Sensor with current output or voltage output (standstill voltage)
Low lifecycle costs for end customer due to high reliability
Easy installation due to standardized mounting flange
Current output signals insensitive to electro-magnetic interference fields
Technical data - GEL 2474
Fields of application - Rail vehicles, traction control
Supply voltage - 10 to 30 V DC
Meassuring range - 0 Hz to 25 kHz
Signal - Voltage output, voltage output with standstill voltage, current voltage
Temperature range - -40 °C to +120 °C
Protection class - IP 68
Number of channels - up to 2
Module m of target wheel - 1 to 3.5
Material of target wheel - ferromagnetic steel
Air gap - 0.2 mm to 3 mm depending on the module
