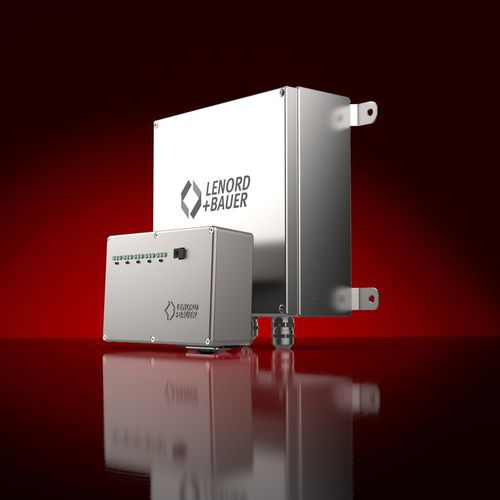

PROFIBUS DP interface module GEL 6505 A/B

CANopenSERCOS

General The SeGMo-Box GEL 6505 is the decentral control unit in the SeGMo-System and is available in two variants. Up to five positioning drives of the SeGMo family can be connected directly using hybrid cables. The installation of the SeGMo-System is cost-optimised and very compact. The motor power for the positioning drives connected is monitored and switched by the power management in the GEL 6505. Plug-in interface modules are available for the communication with the central control system (PLC). With the aid of the SeGMo-Box the positioning drives can also be placed in operation without a higher level plant control system. Features ■ Configured for up to five positioning drives of the SeGMo family ■ Supply voltage: 24 V DC / max. 40 A (UL: max. 27.5 A) ■ Separate connection possible for supply of power circuits and for supply of logic circuits ■ Plug-in interface modules for CANopen, PROFIBUS-DP, PROFINET IO / RT, EtherCAT, EtherNet/IP, Sercos Ⅲ, POWERLINK ■ Degree of protection IP 20, IP 68 or IP 69K ■ Depending on the design either with cULus component recognition or cULus listing Advantages ■ Compact type of connection ■ Electronic fuses ■ Integrated power management ■ Straightforward commissioning of the positioning drives by means of automatic parameter settings and configuration ■ Support Tool for advanced commissioning and configuration Fields of application ■ Packaging machines ■ Food and bottling plants ■ Wood and plastic working machines ■ Printing presses and book binding machines ■ Extensive production plants
