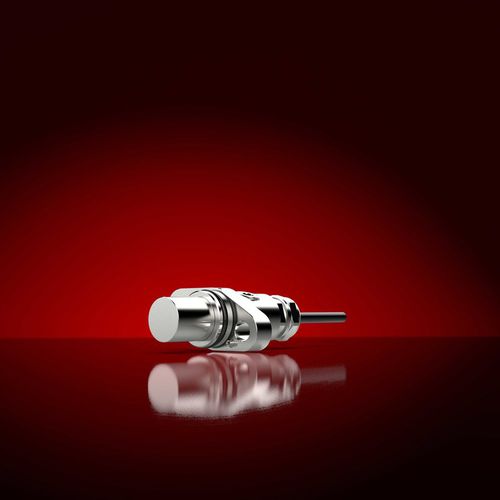

Rotational speed sensor GEL 2475magneticcompact
Add to favorites
Compare this product
Characteristics
- Type of movement
- rotational
- Technology
- magnetic
- Other characteristics
- compact
- Frequency
Max.: 20,000 Hz
Min.: 0 Hz
- Temperature range
Max.: 120 °C
(248 °F)Min.: -40 °C
(-40 °F)
Description
Sensor with current or voltage output (standstill monitoring voltage)
Current output signals unsusceptible to electromagnetic disturbances
Cable break monitoring by current output or voltage output with standstill monitoring voltage
Easy to install as there is a large measuring distance
Technical data - GEL 2475
Fields of application - Rail vehicles, traction control, train control
Supply voltage - 10 to 30 V DC
Measuring range - 0 Hz to 20 kHz
Signal - Voltage output with standstill voltage, current output
Temperature range - -40 °C to +120 °C
Protection class - IP 68
Number of channels - up to 2
Module m of target wheel - 1 to 3.5
Material of target wheel - ferromagnetic steel
Air gap - 0.2 mm to 3 mm depending on the module
