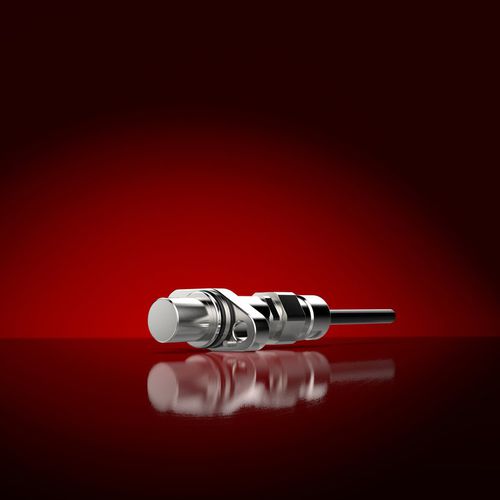

Rotational speed sensor GEL 2477magneticnon-contacthigh-resolution
Add to favorites
Compare this product
Characteristics
- Type of movement
- rotational
- Technology
- magnetic
- Other characteristics
- non-contact, high-resolution
- Frequency
Max.: 200,000 Hz
Min.: 0 Hz
- Temperature range
Max.: 120 °C
(248 °F)Min.: -40 °C
(-40 °F)
Description
Sensor with pulse multiplier
High resolution through pulse multiplier (2-, 4-, and 8-fold)
Space-saving sensor in a compact design
Easy flange mounting
Technical data - GEL 2477
Fields of application - Rail vehicles, traction control
Supply voltage - 10 to 30 V DC
Output frequency - up to 200 kHz, high resolution due to pulse multiplier
Signal - Voltage output, current output
Temperature range - -40 °C to +120 °C
Protection class - IP 68
Number of channels - up to 2
Module m of target wheel - 1
Material of target wheel - ferromagnetic steel
Air gap - 0.4 mm to 1.0 mm
