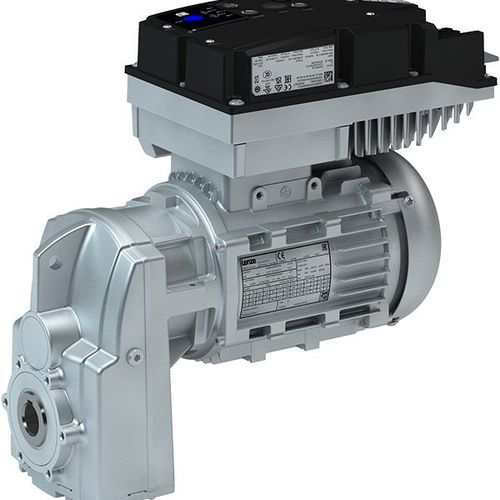

Three-phase gear-motor g500-S + m500 + i550 motechelicalparallel-shafthollow-shaft
Add to favorites
Compare this product
Characteristics
- Motor type
- three-phase
- Type
- helical
- Shaft orientation
- parallel-shaft
- Shaft configuration
- hollow-shaft
- Power
- 100 W...500 W, 500 W...1000 W, 1 kW...2 kW, 2 kW...5 kW, 5 kW...10 kW
- Torque
- 5 - 10 Nm, 10 - 20 Nm, 20 - 50 Nm, 50 - 100 Nm, 100 - 200 Nm, 200 - 500 Nm, 500 - 1000 Nm, 2 - 5 kNm
- Mounting
- shaft-mounted
- Number of stages
- two-stage, three-stage, four-stage
- Performance
- low-backlash
- Other characteristics
- compact, IE3, IP55, with integrated frequency inverters
- Gear ratio
Max.: 4,640 unit
Min.: 0 unit
- Operating temperature
Max.: 40 °C
(104 °F)Min.: -20 °C
(-4 °F)
Description
The slim and space-saving shaft-mounted helical geared motors are a simple plug-on drive unit and can be controlled continuously with the integrated frequency inverter. They comply with efficiency class IE3.
Thanks to the shaft-mounted helical gearbox, they have high permissible radial forces, closely stepped ratios and low backlash.
- Shaft dimensions in line with market standard and standardized flanges
- Speed control via the integrated frequency inverter enables universal use
