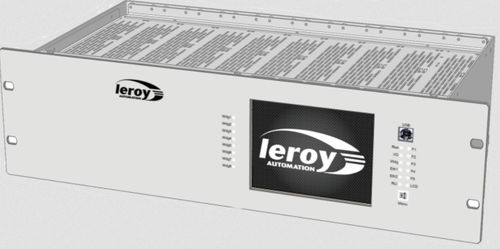

Panel-mount PLC ACS

16-IModbus RTUEthernet

Designed to meet the requirements of the EN61850 standard, the ACS range is used to control and manage the power supply of electrical substations. The touch screen on the front panel allows ergonomic control of the installation: visualize, order, list and acknowledge defects, … The inputs / outputs are wired on the rear panel. They are designed to adapt to any type of power supply : 24Vdc, 48Vdc or 125Vdc. The IEC61850 protocol allows an integration into the global control system of the substation. More than 30000 ACS modular boards are installed to date. CENTRAL UNIT -Central processing processor : -Marvel Xscale 32 bits 416Mhz -I/O coprocessor : -STM32 120Mhz -Memories : -RAM : 64Mo -Flash ROM : 32Mo -Flash (persistent memory) : 4Ko INPUTS/OUTPUTS FEATURES Redundant Multi-voltage Inputs board Board with 16 inputs 2 distinct acquisition chains by input Connector screw : 1 common for 2 inputs Operating voltage of each input : choice by wiring : 24Vdc – 20 mA 48Vdc – 15 mA 125Vdc – 6 mA Self-monitoring on the card: Monitoring of internal tensions Monitoring of the dialogue with the CPU Redundancy of the card addressing on the bus Control-command board Board with 4 switchgear interfaces. For each interface : 1 relay output “to close the switchgear” 1 relay output “to open the switchgear” Max. switching voltage : 300Vdc Max. switching power : 60W 1 input “switchgear closed” 1 input “switchgear open” Choice of input voltage by wiring
