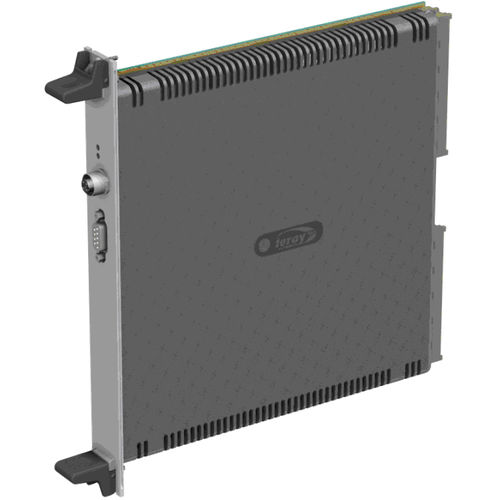

Digital I O module BRIO series

EthernetModbus RTUCANopen

Together with the central computers, the EN 50155 qualified input / output modules make it possible to build complete train control control (TCMS) architectures. These acquisition and control modules are based on a generic platform: the “Basic Remote”. Input Output “module (” BRIO “) Generic BRIO complies with the SIL0 level of EN 50126, EN 50128, EN 50129. The range is supplemented by specific modules: -BRIO SIL2 : SIL2 Input/output Modules -BRIO SSPC : Solid State Power Controller -BRIO CEE : Energy Exchange Controller CENTRAL UNIT -Processor : STM32 32 bits/200Mhz -Operating system : Free RTOS -I/O coprocessor : FPGA Xilinx -Memories : SDRAM 8Mo, NAND, Crypto. MOUNTING AND INSTALLATION -Aluminium product with protective cover made of composite material -Dimensions : W x H x D = 30 x 262 x 265 mm -Mounting : -6U x 6HP rack mounting -Remote stand-alone mounting with a side support -Wiring of inputs/outputs and power supply on the rear panel : -2 connectors of type DIN41612 F48 male class 1 -Wiring network on the front panel : -Ethernet : M12 code D female -Serial links : Subd 9 points POWER SUPPLY -Full range power supply 24Vdc to 110Vdc -Protection against polarity reversal and under voltage -Power consumption : <20W CONFIGURABLE MODULE -BRIO can be used as a configurable remote module -Data mapping is fixed -Possibility to trigger the download of operating parameters from a central database after recognition of an identification key connected to the SubD RS232 -Operation and maintenance by Web Services
