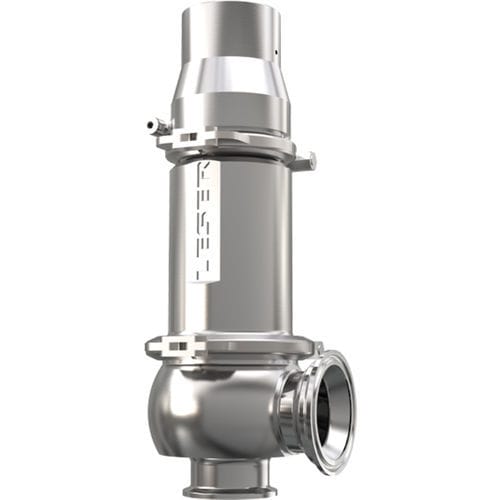

Safety valve 483

Safety valves for food, beverage and pharmaceutical applications Short and uniform delivery times for Clean Service safety valves: Get 155 top runner variants in three weeks. These top runners cover 90% of the supplied Clean Service valves. -Better cleaning through: - Low dead space ratio L/D from up to < 0.33 -HyTight Assembly: gap-free design of the internal parts -Surfaces packages according to ASME BPE and DIN 11866 with a high surface quality up to Ra max = 0.375 µm / 15 µinch -Easy process integration through cleaning (CIP) or sterilizing (SIP) with pneumatic lifting device possible -Worldwide approvals, FDA-compliant elastomers and a wide range of aseptic connections -Alternative to bursting disc Technical specifications Type 483 Orifice D - F Actual Orifice Diameter d₀ 13 - 25 mm | 0.512 - 0.984 in Actual Orifice Area A₀ 133 - 491 mm² | 0.206 - 0.761 in² Temperature (in accordance with DIN EN) -45 to 150 °C | -49 to 302 °F Body Material 1.4435 (BN2) | SA 479 316L Valve Connection Clamps acc. to ASME BPE, DIN 32676, ISO 2852, Aseptic clamps acc. to DIN 11864 T1 Series A or B (with nut) or DIN 11851, Neumo Sterile thread (with nut), Welded end connection acc. to DIN 11850, Flange acc. to DIN 11864 T2 Series A or B, Aseptic flange Nut flange, Smooth flange, Varivent connection Bellows Material (optional) EPDM Load Type Spring loaded Approvals PED/ DIN EN ISO 4126-1, PED/ AD 2000-Merkblatt A2, ASME Section XIII certified for Section VIII Div. 1 service, CRN, AQSIQ, EAC Specials HyTight Assembly Designed and manufactured acc. to: DIN 11866, ASME BPE, EN 1672-2, DIN ISO 14159, USP class VI and FDA 21 CFR
