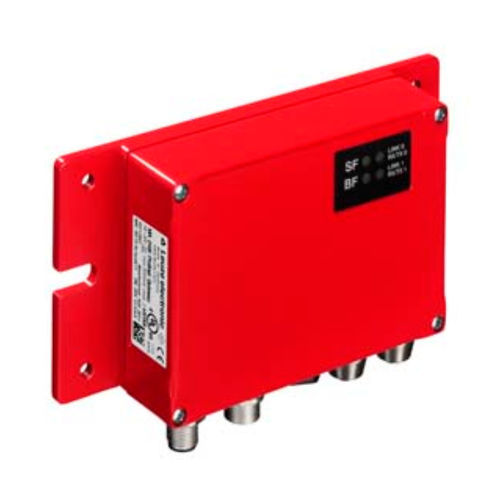

Communication gateway MA 248i

RS-232ProfiNet

Suitable for - BCL 2x series bar code readers BCL 8 series bar code readers BPS 8 series bar code positioning system DCR 200i series stationary 2D-code readers FIS series mobile 2D-code readers HFxx series mobile RFID read/write systems HS 65x8 IT 1900g series mobile 2D-code readers IT 1902g series mobile 2D-code readers IT 1910 series mobile 2D-code readers IT 1911i series mobile 2D-code readers LSIS 4xxi series stationary 2D-code readers LSIS 222 series stationary 2D-code readers RFI RFM Supply voltage UB - 18 ... 30 V, DC Current consumption, max. - 300 mA Type - PROFINET, RS 232 Number of connections - 6 Piece(s) Function - Connection to device Type of connection - Plug connector Function - BUS OUT Type of connection - Connector Thread size - M12 Type - Female Material - Plastic No. of pins - 4 -pin Encoding - D-coded Function - BUS IN Type of connection - Connector Thread size - M12 Type - Female Material - Metal No. of pins - 4 -pin Encoding - D-coded Function - Voltage supply Type of connection - Connector Thread size - M12 Type - Male Material - Metal No. of pins - 5 -pin Encoding - A-coded Function - Voltage supply Type of connection - Connector Thread size - M12 Type - Male Material - Metal No. of pins - 5 -pin Encoding - A-coded Function - Service interface Type of connection - Sub-D No. of pins - 9 -pin Design - Cubic Dimension (W x H x L) - 107 mm x 40 mm x 180 mm Housing material - Metal Net weight - 700 g Housing color - Red, RAL 3000 Type of fastening - Through-hole mounting Type of display - LED Number of LEDs - 4 Piece(s) Ambient temperature, operation - -30 ... 55 °C
