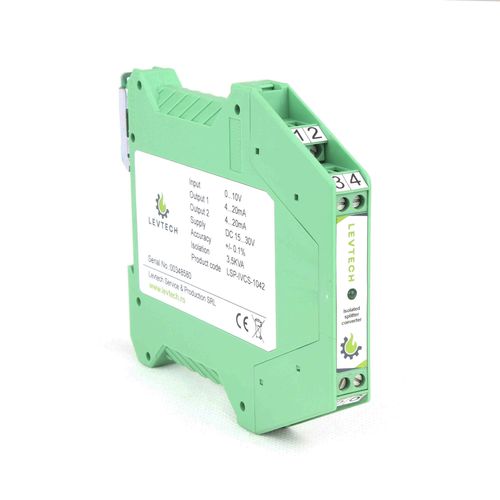

Galvanically-isolated signal converter LSP-IVCS series

analogtransmitterisolator

This device makes an analog signal conversion and it sends the same signal out on the two outputs. It also makes a galvanic isolation between the input, output1, output2 and power supply. The signal converter is used in cases where the measurement device or transmitter analog signal type is not corresponding to the input of the processing unit. For example, you have a conductivity transmitter with 4-20mA output, but you have a Siemens 1200 PLC with only analog 0-10V signal input. Using this converter the 4-20mA signal is converted to 0-10V analog signal and it is cheaper then buying an analog input module for the PLC. Plus it is a 3 point galvanic isolator itself, which makes 3500kV isolation between the input, output and power supply. Features • Three way isolated • 3500kV isolation • TS-35 DIN rail mounting • +/-0.1% accuracy • Ip40 case • Screw terminals • Power LED • Supply voltage 24VDC • Made in EU
