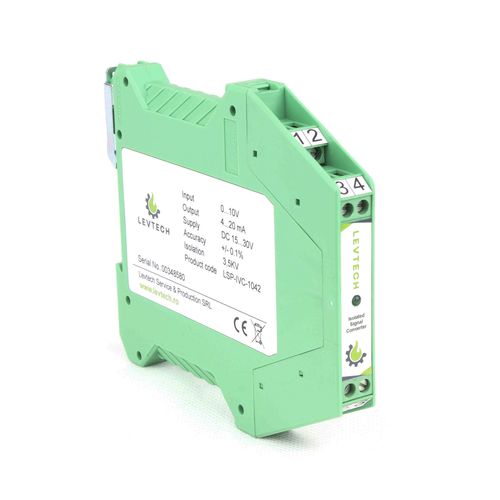

Analog signal converter LSP-IC series

transmitterisolatorDIN rail

This device is used for converting standardized analog signals (0(4)-20mA, 0-10V, 0-5V) for example 4-20mA input to 0-10V output. The device has to be ordered for the specific conversion and can not be changed afterwards. What is the Isolated Signal Converter? The signal converter is used in cases where the measurement device or transmitter analog signal type is not corresponding to the input of the processing unit. For example, you have a conductivity transmitter with 4-20mA output, but you have a Siemens 1200 PLC with only analog 0-10V signal input. Using this converter the 4-20mA signal is converted to 0-10V analog signal and it is cheaper then buying an analog input module for the PLC. Plus it is a 3 point galvanic isolator itself, which makes 3500VDC isolation between the input, output and power supply. Conversion types that can be ordered: Order Code - Input - Output LSP-IVC-1020 - 0-10V - 0-20mA LSP-IVC-1042 - 0-10V - 4-20mA LSP-IVC-0520 - 0-5V - 0-20mA LSP-IVC-0542 - 0-5V - 4-20mA LSP-IAC-2010 - 0-20mA - 0-10V LSP-IAC-2005 - 0-20mA - 0-5V LSP-IAC-4210 - 4-20mA - 0-10V LSP-IAC-4205 - 4-20mA - 0-5V LSP-IAC-4202 - 4-20mA - 0-20mA LSP-IAC-0242 - 0-20mA - 4-20mA Features • Three way isolated • 3500VDC isolation • Factory calibrated • TS-35 DIN rail mounting • +/-0.1% accuracy • 0-10V or 0-5V analog output • Ip40 case • Screw terminals • Power LED • Supply voltage 24VDC • Made in EU
