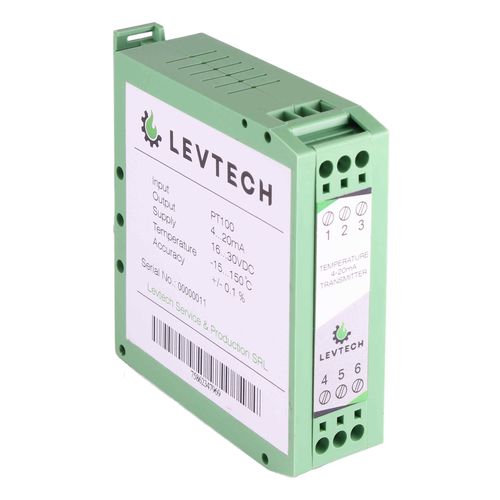

DIN rail mount temperature transmitter LSP-TST

RTDPt100Pt1000

The LSP-TST is a cost effective easy to use temperature transmitter for Pt 100 or Pt1000 3 wire or 2 wire temperature sensor. This device provides a linearised 4-20mA current loop signal output or 2-10V, proportional to the temperature characteristic of the Pt100 or Pt1000 sensor. Temperature range can be changed on request before order (Default -15 to 150 C). This temperature transmitter is designed to provide a linearised 4-20mA current loop signal output or 2-10V, proportional with the temperature characteristic of the Pt100 sensor connected on its input. On the input it is possible to connect both 3 wires and 2 wires Pt100 or Pt1000. This transmitter is suitable for any industrial application and with its DIN rail mountable enclosure it is easy to instal in electrical cabinets. The transmitter acquires its supply voltage from the current loop and no additional supply is needed. Features • RTD type Pt100 or Pt1000 Input • 4 to 20 mA linearised output on current loop or 0-10V • TS-35 DIN rail mounting • +/-0.1% accuracy • Ip40 case • Screw terminals • Easy to use • Supply from current loop
