Diaphragm pump LDF
for chemicalsfor food productshydraulically-operated

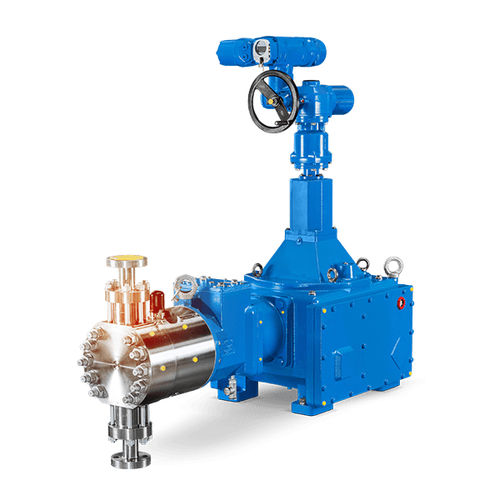

Diaphragm pump - LDF - LEWA GmbH - for chemicals / for food products / hydraulically-operated
Diaphragm pump - LDF - LEWA GmbH - for chemicals / for food products / hydraulically-operated
Diaphragm pump - LDF - LEWA GmbH - for chemicals / for food products / hydraulically-operated - image - 2
Diaphragm pump - LDF - LEWA GmbH - for chemicals / for food products / hydraulically-operated - image - 3
Diaphragm pump - LDF - LEWA GmbH - for chemicals / for food products / hydraulically-operated - image - 4
Diaphragm pump - LDF - LEWA GmbH - for chemicals / for food products / hydraulically-operated - image - 5
Diaphragm pump - LDF - LEWA GmbH - for chemicals / for food products / hydraulically-operated - image - 6
Diaphragm pump - LDF - LEWA GmbH - for chemicals / for food products / hydraulically-operated - image - 7
Diaphragm pump - LDF - LEWA GmbH - for chemicals / for food products / hydraulically-operated - image - 8
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Fluid
for chemicals, for food products
Operation
hydraulically-operated
Mobility
stationary, mobile
Domain
industrial, for the petrochemical industry, for the pharmaceutical industry
Applications
metering, high-pressure, process
Other characteristics
suction, modular, in-line
Flow

Min.: 0 m³/h
(0 ft³/h)

Max.: 19 m³/h
(670.97867 ft³/h)

Pressure

Min.: 0 bar
(0 psi)

Max.: 1,200 bar
(17,404.529 psi)

Power

Min.: 3.5 kW
(4.76 hp)

Max.: 35 kW
(47.59 hp)

Fluid temperature

Min.: -70 °C
(-94 °F)

Max.: 400 °C
(752 °F)

Length

Min.: 1,130 mm
(44 in)

Max.: 2,100 mm
(83 in)

Width

Min.: 900 mm
(35.43 in)

Max.: 1,800 mm
(70.87 in)

Height

Min.: 940 mm
(37.01 in)

Max.: 1,500 mm
(59.06 in)

Description

The ecoflow diaphragm process pump is an advanced pump for high-pressure process technology. It features a variable modular design and provides the right solution for a vast assortment of industrial applications. The DPS diaphragm protection system ensures maximum process reliability. The diaphragm process pump achieves flow rates of up to 19 m3/h per pump head and discharge pressures of up to 1200 bar. LEWA ecoflow® The all-around talent for high pressure. The ecoflow diaphragm process pump is the "big sibling" of the ecoflow diaphragm metering pump. It is the world's most advanced pump of its kind and the right solution for almost all applications in process technology requiring high discharge pressures. The tried-and-tested modular system makes it possible to combine various pump heads and drive units in variable modular construction with an in-line or boxer design. The ecoflow ensures dependable use even under the harshest conditions thanks to a patented sandwich diaphragm, diaphragm protection system and high drive unit durability. It is ideal for applications involving virtually any media, even hazardous, combustible, toxic, abrasive, viscous, environmentally harmful or sensitive fluids.

VIDEO
