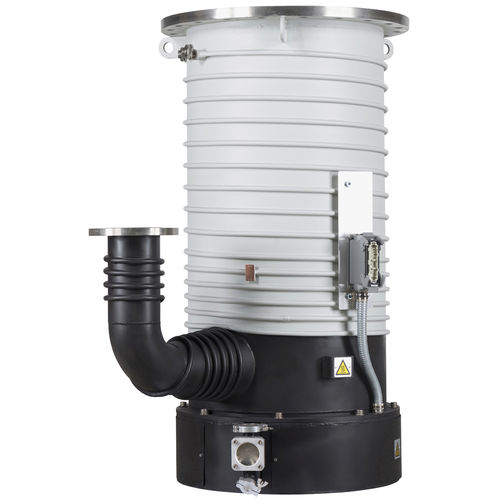

Diffusion vacuum pump DIJ 630

lubricatedsingle-stage

DIJ benefits at a glance ■ Most innovative heating concept utilizing newly developed heater cartridges with large heat exchange surface for an optimized energy transfer into the oil. Effective temperature monitoring protects the system against overheating. The insulated heater area ensures minimum energy losses. + Minimum stress and longest lifetime for heaters and oil + Highest uptime + Flanged heaters, easy to exchange ■ Choice of flange variants for improved connectivity + ANSI / Inch flanges (with O-ring) + ISO-F or ISO-K flanges (with centering ring) ■ Unique baffle design + Proven cold cap baffle at the inlet to minimize oil backstreaming + Innovative, new foreline baffle for reduced oil losses ■ Various electrical connection opportunities to meet customers requirements + Basic – simplified OEM connection with male plug + Standard – with circuit breaker box + ECO, with switchbox and energy control unit ■ Five stage system design provides excellent performance data + Four diffusion pump stages for highest suction speed at low pressures and lowest final pressure + One ejector stage for high forevacuum stability and stable throughput at pressures >10-3 mbar
