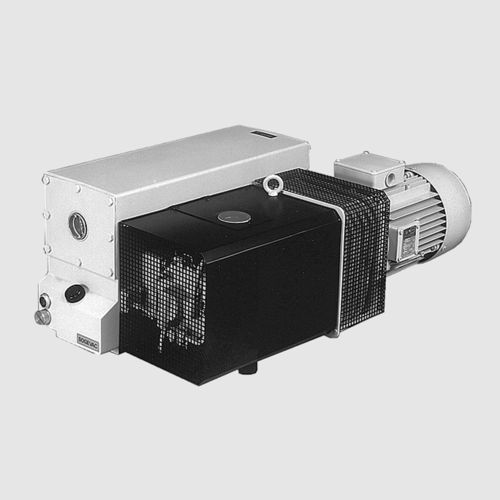

Rotary vane vacuum pump SOGEVAC SV 200lubricatedsingle-stagecompact
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Lubrication
- lubricated
- Number of stages
- single-stage
- Other characteristics
- compact
- Ultimate vacuum
0.08 mbar
(0 psi)- Flow rate
Max.: 200 m³/h
(7,062.93 ft³/h)Min.: 170 m³/h
(6,003.49 ft³/h)
Description
The standard version of the SOGEVAC rotary vane pump series is suitable for rough industrial applications which can be customized to fit individual customer needs. A wide range of monitoring accessories and options are available. Different motor versions, inlet or exhaust ports, food-grade oil, food-grade paint, larger gas ballast are some examples of possible customizing.
Operating fluid: - LEYBONOL LVO 130
Pumping speed (50 Hz): - 170 m³/h
Pumping speed (60 Hz): - 200 m³/h
Ultimate pressure: - 0.08 mbar
