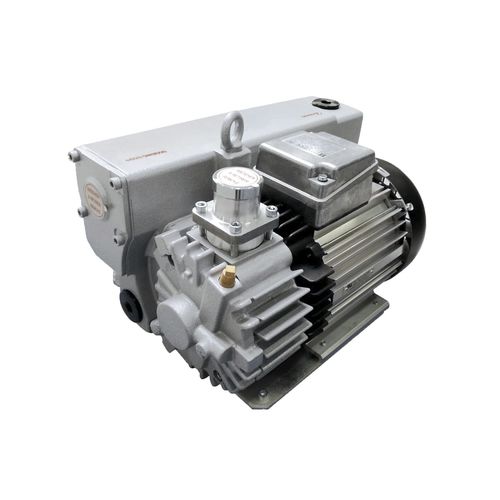

Rotary vane vacuum pump SOGEVAC SV 25 FPlubricatedsingle-stagefor food
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Lubrication
- lubricated
- Number of stages
- single-stage
- Applications
- for food
- Other characteristics
- oil-sealed
- Ultimate vacuum
0.5 mbar
(0.01 psi)- Flow rate
Min.: 22.5 m³/h
(794.58 ft³/h)Max.: 31 m³/h
(1,094.75 ft³/h)
Description
The SOGEVAC series is a one stage vacuum pump. Many years of experience in vacuum engineering and the latest developments in pump technology combine in the SOGEVAC range the capability to adapt to the requirements of both the industry and the environment. The comprehensive range (pumping speeds ranging from 10 to 1200 m3 /h (5.9 to 707 cfm)) allows every customer to select the right pump for his particular needs.
Operating fluid: - LEYBONOL LVO 140
Pumping speed (50 Hz): - 22.5 m³/h
Pumping speed (60 Hz): - 31 m³/h
Ultimate pressure: - 0.5 mbar
