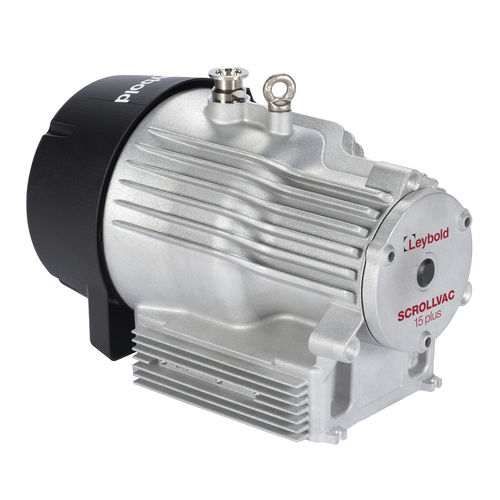

Scroll vacuum pump SCROLLVAC 15 plus

drysingle-stagecompressor

Defining Vacuum - SCROLLVAC plus, the new dry scroll pump from Leybold. The new SCROLLVAC plus vacuum pump is the latest addition to our range of dry pumps. Providing a flexible, robust and simple vacuum pump solution, across a wide spectrum of applications, SCROLLVAC plus demonstrates what is possible from a dry scroll pump. The pumping principle A Scroll pump consists of two engaged spiral forms. One scroll form is mounted eccentrically to the other and is made to move in an orbiting path relative to the fixed scroll. This creates crescent shaped volumes that are driven from the outside to the inside of the forms thereby pumping the gas. Able to address the widest range of applications … Flexible. We understand flexibility and choice is essential when selecting the right dry vacuum solution for your application. With single-phase and three-phase variants and versions for specialized applications, you can be sure to find a member of the SCROLLVAC plus family perfect for you. Pump versions in the range covering pumping speeds of 7, 10, 15 and 18 m3/h Single-phase variant feature universal voltage drive for constant performance world-wide Three-phase electronic-free variants for radiation and high magnetic field applications Integrated gas ballast permits pumping of condensable vapors Compact and lightweight design permits simple integration into your new or existing vacuum system
