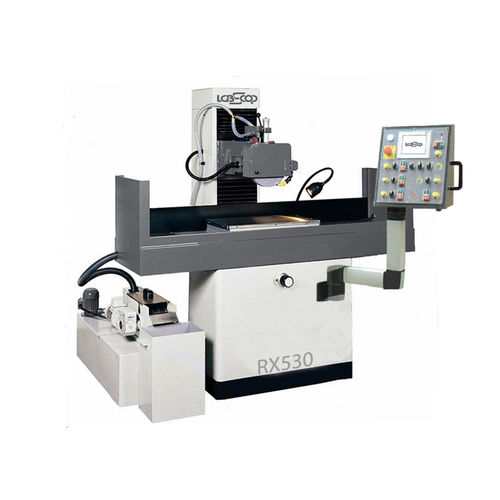

Surface grinding machine RK 530workpiecetoolfor metal sheets
Add to favorites
Compare this product
Characteristics
- Type
- surface
- Applications
- workpiece, tool, for metal sheets, glass, for small workpieces, for hard metal
- Structure
- with moving table, travelling column
- Control type
- CNC, automatic, PLC-controlled
- Number of axes
- 3-axis
- Features
- direct-drive
- Other characteristics
- high-precision, CBN, continuous, compact, heavy-duty, variable-speed, with touch screen, lapping, electric motor driven, wet
- Spindle speed
Max.: 2,500 rpm
(15,708 rad.min-1)Min.: 1,600 rpm
(10,053 rad.min-1)- Power
4 kW
(5.44 hp)- Distance between centers
345 mm
(14 in)- X travel
630 mm
(24.8 in)- Y travel
310 mm
(12.2 in)
Description
The single column structure (mobile table and mobile column) offers high stability thanks to absence of overhang, enhanced by controlled thermal stabilization.The “X”, “Y” and “Z” axis are equipped with roller guides which ensure high accuracy in the positioning of the axes.The control software on the KEB touch screen was developed by LGB Scop teams for a simplified control system which is ideal for grinding operations of single parts.
This new “RK” range was developed in close cooperation with our clients and our partners in order to meet machining requirements in the field of tool making (mold design and matrices).
