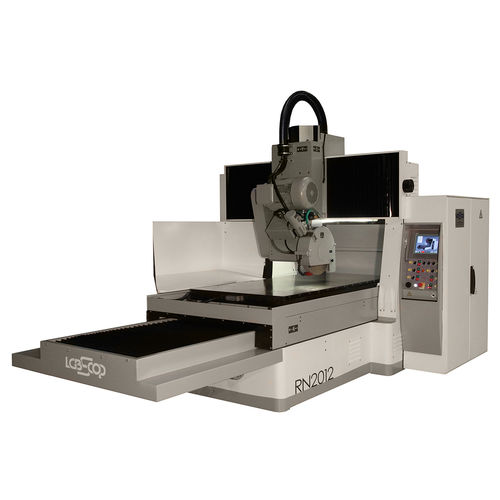

Surface grinding machine RCK 2012workpiecetoolfor metal sheets
Add to favorites
Compare this product
Characteristics
- Type
- surface
- Applications
- workpiece, tool, for metal sheets, for large workpieces, glass, for small workpieces, metal profile, engine, for hard metal
- Structure
- gantry type, with moving table, travelling head
- Control type
- CNC, automatic, PLC-controlled
- Number of axes
- 3-axis
- Features
- direct-drive, large-size
- Other characteristics
- variable-speed, high-precision, CBN, high-capacity, continuous, compact, heavy-duty, electric motor driven, with touch screen, wet, lapping, foundry
- Spindle speed
Min.: 900 rpm
(5,655 rad.min-1)Max.: 1,400 rpm
(8,796 rad.min-1)- Power
18.5 kW
(25.15 hp)- Distance between centers
905 mm
(36 in)- X travel
2,200 mm
(86.61 in)- Y travel
1,240 mm
(48.82 in)
Description
The portal structure of the machine (mobile table, fixed bed, portal and traverse) enables increased stability and rigidity which are enhanced by controlled thermal stabilization.
The “X”, “Y” and “Z” axis are equipped with roller guides and HEIDENHAIN absolute linear encoders which ensure high accuracy in the positioning of the axes. The software, developed by the LGB team, supported by the KEB “Touch screen” enables quick start and intuitive use. The combination of each elements of the machine provides high performance in your simple and complex grinding operations.
This new “RCK” range was developed in close cooperation with our clients and our partners in order to meet machining requirements in the field of tool making (mold design, matrices and models), production of parts for aviation and car industry as well as for high precision mechanics products.
