3-axis CNC milling machine KX40 GV1
verticalwith fixed portalfixed-bed

3-axis CNC milling machine - KX40 GV1 - LGB Scop - vertical / with fixed portal / fixed-bed

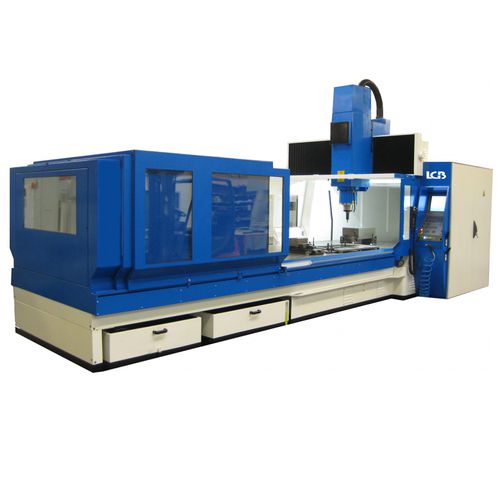

3-axis CNC milling machine - KX40 GV1 - LGB Scop - vertical / with fixed portal / fixed-bed - image - 2

Add to favorites

Compare this product

Characteristics

Number of axes: 3-axis
Spindle orientation: vertical
Structure: with fixed portal, fixed-bed, with moving table
Spindle mount: HSK-63-A
Number of tool stations: 24 tools
Associated functions: cutting
Applications: for the mold industry, for matrices
Other characteristics: high-speed, high-precision, with automatic tool changer
X travel: 2,300 mm
(90.55 in)
Y travel: 1,160 mm
(45.67 in)
Z travel: 600 mm
(23.62 in)
Rotational speed: 24,000 rpm
(150,796 rad.min-1)
Power: 20 kW, 25 kW, 51 kW
(27.19 hp, 33.99 hp, 69.34 hp)
Work feed X-axis: 40,000 mm/min
(26 in/s)
Work feed Y-axis: 40,000 mm/min
(26 in/s)
Work feed Z-axis: 30,000 mm/min
(20 in/s)
Tool weight (max): 5 kg
(11 lb)
Tool-changing time: 8 s
Weight: 10,500 kg
(23,148.54 lb)
Overall length: 6,400 mm
(252 in)
Overall width: 3,150 mm
(124 in)
Overall height: 3,260 mm
(128.3 in)

Description

The portal structure of the machine (mobile table, fixed bed, portal and traverse) enables increased stability and rigidity which are enhanced by controlled thermal stabilization.The “X”, “Y” and “Z” axis are equipped with SCHNEEBERGER roller guides which ensure high accuracy in the positioning of the axes.The HEIDENHAIN pack including a CN IT 530 HSCI, absolute linear encoders, motors for axis and variators enables high speeds and excellent cutting accuracy in roughing and in finishing thanks to the perfect interaction between HSM algorithm of the digital control and different machine parts.The combination of each elements of this machine provides high performance. This new “GV” range was developed in close cooperation with our clients and our partners in order to meet machining requirements in the field of tool making (mold design, matrices and models), production of parts for aviation and car industry as well as for high precision mechanics products.
