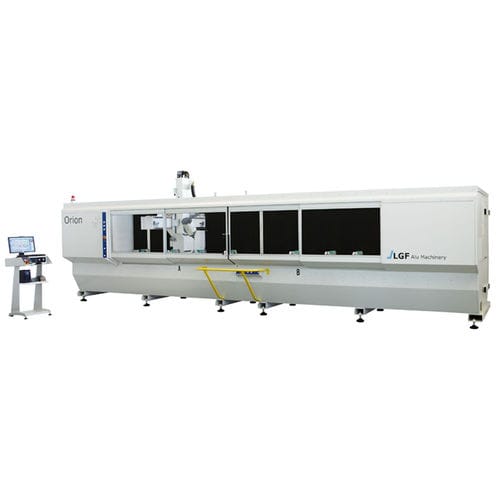

4-axis CNC machining center ORION

with swiveling spindlewith fixed tablefor aluminum

• Electro welded solid steel construction • Axis movement on linear guides and recirculating ballscrew • Work processing from 0° to 180° and intermediate degrees by means of spindle rotation • Industrial PC control system with LGF dedicated software • Windows interface • Nr. 4 controlled axis • Nr. 4 pneumatic standard clamps with automatic and controlled displacement • 5,5 kw (7,5 HP) electro-spindle with cone type ISO 30 - 12000 r.p.m. • X axis stroke (length) = 4000/7000 mm • Y axis stroke (width) = 1000 mm • Z axis stroke (depth) = 500 mm • X axis speed = 70 mt./min. • Y axis speed = 50 mt./min. • Z axis speed = 30 mt./min. • WORKING STROKE WITH STANDARD CLAMPS: • Working stroke axis X = 3980/6980 mm • Working stroke axis Y = 225 mm • Working stroke axis Z = 200 mm • Working tollerance : +/- 0,2 mm • Automatic tools changer with 5 lodgings • Possibility to work bars longer than the machine • Working pressure 7 bar • Overall dimansions 590-890x170x235 cm • Weight 2200/3775 Kg. • Standard Equipment - • Nr 2 cones type ISO 30 • nr 2 collets Ø 8 mm • Automatic lubrication by means of nebulizer • Air filter • Service spanners
