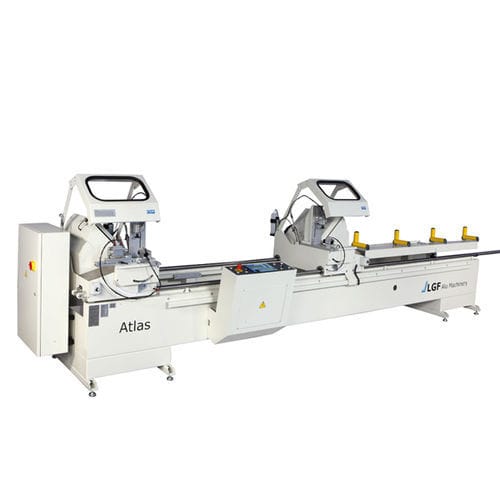

Pneumatic cut-off saw ATLAS DIGIT - ATLAS MX

for metals

• Radial sliding of the sawing unit • Sliding of the moving head by means of ricirculating ball bearings on rectified and tempered guides • Displacement of the right head by means of electronic positioner with monochrome monitor 120x140 and integrated industrial keyboard • USB port to upload cutting lists • Full protection of the sawblades by means of safety hoods with automatic closing • Idro-pneumatic external adjustment of the saw blade feeding • Pneumatic heads tilting by means of a selector at 90° a + 45° • Possibility to perform intermediate degrees by means of a mechanical end stop ATLAS MX • Radial sliding of the sawing group • Sliding of the moving head by means of ricirculating ball bearings on rectified and tempered guides • Displacement of the right head by means of a hand whell • Full protection of the sawblades by means of safety hoods with automatic closing • Idro-pneumatic external adjustment of the saw blade feeding • Movable head position readable by means of a high precision metric scale • Pneumatic heads tilting at 90° a + 45° • Intermediate degrees by means of a mechanical end stop • 1,5 Kw (2 HP) 3 phase motor - 2800 r.p.m. • Max. cutting capacity 4000/5000 mm • Max. sawblade Ø 500mm • Sawblade shaft Ø 30 mm • Working pressure 7 bar • Overall dimensions 411x140x156 cm • Weight 1035 Kg
