- Production Machines
- Cutting Machine
- Sliding table saw
- LGF MACCHINE SRL

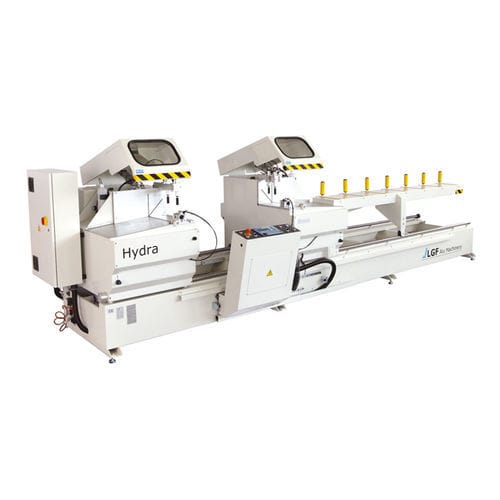

Double-miter saw HYDRA MXsliding tablefor metalssemi-automatic
Add to favorites
Compare this product
Characteristics
- Technology
- sliding table
- Treated material
- for metals
- Operational mode
- semi-automatic
- Other characteristics
- pneumatic, sliding, double-miter
- Circular saw blade diameter
Max.: 530 mm
(21 in)Min.: 500 mm
(20 in)
Description
• Right head displacement by means of hand wheel
• Reading of the cutting dimension on high precision metric scale
• Sliding of the moving head by means of ricirculating ball bearings on rectified and tempered guides
• Variable lenght cutting procedure indipendently from the profile hight
• Full protection of the sawblades by means of safety hoods with automatic closing
• Pneumatic heads tilting at 90° / -45°
• USB port to store/upload of cutting lists and programs
• Possibility to mount sawblades with Ø 500 - 530 mm
• Sawblade shaft Ø 30 mm
• 2,2 Kw (3 HP) 3 phase motors - 2800 r.p.m.
• Cutting lenghts 4000/5000 mm
• Working pressure 7 bar
• Overall dimensions 555-655x160x144 cm
• Weight 1800 - 1950 Kg
