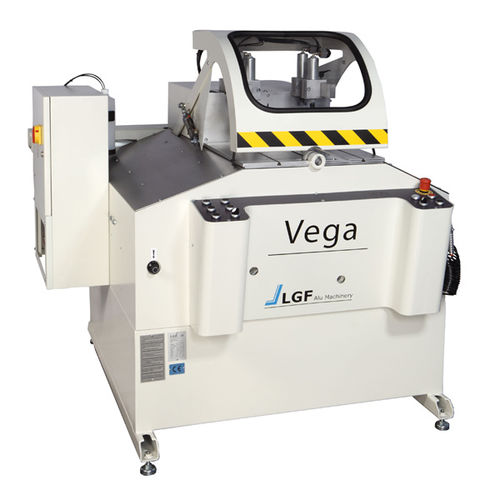

Cut-off saw VEGAfor aluminumsemi-automaticsingle-head
Add to favorites
Compare this product
Characteristics
- Technology
- cut-off
- Treated material
- for aluminum
- Operational mode
- semi-automatic
- Other characteristics
- single-head
- Circular saw blade diameter
530 mm, 550 mm
(21 in, 22 in)
Description
• Radial sliding of the sawing unit
• Semi automatic cutting procedure of profiles up to 400mm width
• Full protection of the sawing group by means of safety cover with pneumatic closing by selector
• Automatic head tilting with fixed positions at +45°/90°/-45°
• Automatic lubrication by means of nebulizer
• Idro-pneumatic external adjustment of the saw blade feeding
• Possibility to mount blades with Ø 530/550 mm
• 2,2 Kw (3 HP) 3 phase motor - 2800 r.p.m.
• Working pressure 7 bar
• Overall dimensions 137x141x134 cm
• Weight 753 Kg
• T.C.T. saw blade diam. 530mm
• Nr. 2 horizontal pneumatic clamps
• Nr. 2 vertical pneuamatic clamps
• Air filter
• Air gun
• Service spanner
