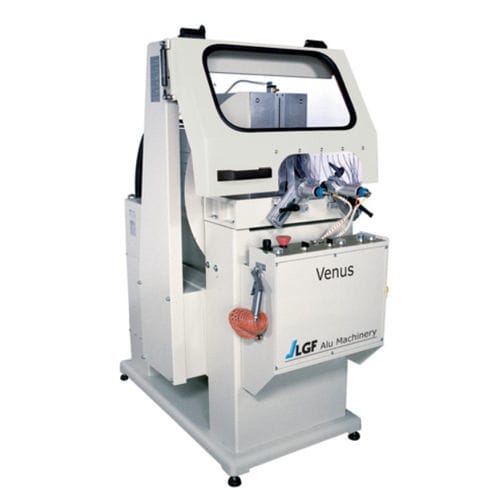

Single-head saw VENUS
cut-offfor aluminumsemi-automatic

single-head saw
single-head saw
Add to favorites
Compare this product


Characteristics

Technology
cut-off
Treated material
for aluminum
Operational mode
semi-automatic
Other characteristics
single-head, pneumatic, sliding
Circular saw blade diameter

500 mm, 530 mm, 550 mm
(20 in, 21 in, 22 in)

Description

• Radial sliding of the sawing group • Full protection of the sawblade by means of safety cover with manual closing • Automatic, pneumatic tilting of the head with indexed positions at -45°/90°/45° • Possibility to perform, cuts at any intermediate degrees from 30° left to 30° right, with mechanical end stop • Outfeed of the sawblade by means of oleo-pneumatic cylinder • Idro-pneumatic external adjustment of the saw blade feeding • Possibilty to mount sawblades with Ø 500 - 530 - 550 mm • Sawblade shaft Ø 30 mm • Overall dimensions 76x135x156 cm • Weight 330 kg • TCT saw Blade Ø 500 mm • Nr 2 horizontal pneumatic clamps • Automatic lubrication bt means of nebulizer • Interchangeable aluminium support/base on working bench • Air filter • Air gun • Service spanners

Catalogs

venus
venus
2 Pages
