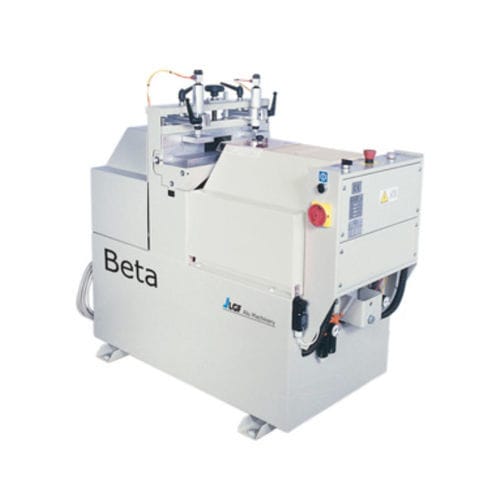

Glazing bead saw BETAcut-offfor metals
Add to favorites
Compare this product
Characteristics
- Technology
- cut-off
- Treated material
- for metals
- Applications
- glazing bead
- Circular saw blade diameter
103 mm, 225 mm
(4 in, 9 in)
Description
• Full protection of the sawing carriage
• Automatic feeding of the sawing group
• Radial sliding of the sawblades
• Fixed inclination of the sawing group at 45�
• Adjustment of the working bench by means of hand wheel
• External idro-pneumatic adjustment of the sawblades feeding
• 1,1 Kw (1,5HP) 3 phase motors - 2800 r.p.m.
• Max. cutting hight capacity 43 mm
• Max. cutting width capacity 140 mm
• Working pressure 7 bar
• Overall dimensions 120x68x110 cm
• Weight 250 kg
• Vertical pneumatic clamps
• Virgin templates
• Automatic lubrication by means of nebulizer
• Nr. 2 T.C.T sawblades Ø 225 mm
• Nr. 2 T.C.T sawblades Ø 103,4 mm
• Air filter
• Service spanners
