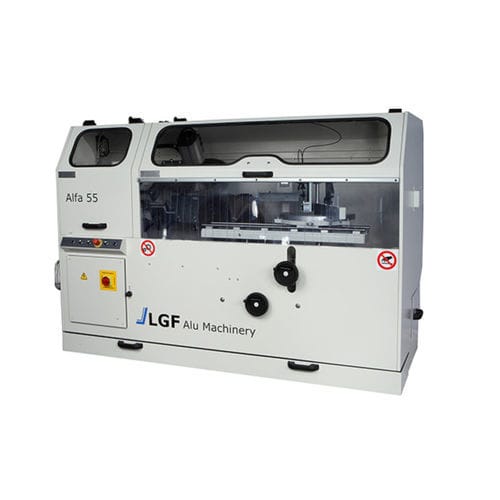

90° fixed angle notching machine ALFA 55

pneumatic

• Machine totally enclosed • Sliding of the sawing carriage by means of ricirculating ball bearings on rectified and temperated guides • Clylinder stroke 825 mm • Adjustable feeding of the sawing carriage 4-10 mt/min • Blades tilting range +/- 45� by means of hand wheel • Possibility to perform cuts at any intermediate degrees • Adjustable working bench in terms of hight and depth by means of hand wheels • Tilting fence on the working bench at 45�/90�/-60� • Maximum height of the profile with working bench at zero H=100mm • Maximum width of the profile 230mm • Maximum depth of horizontal cutting 190mm • Maximum depth of vertical cutting 200mm • 2,2 Kw (3 HP) self braking motors - 2800 r.p.m. • Saw blades bore � 30 mm • Working pressure 7 bar • Overall dimensions: 250x122x174 cm • Weight: 730 kg
