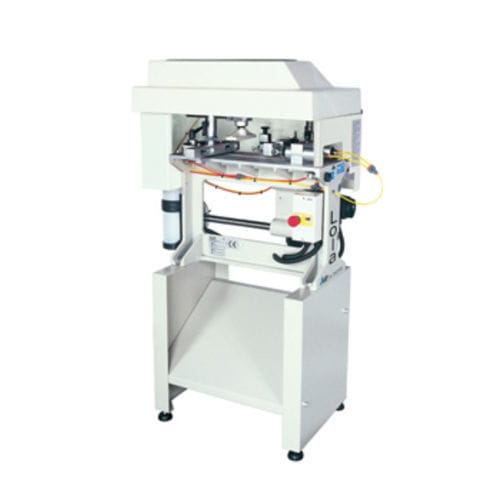

Aluminum end milling machine LOLA

for PVCfor profiles

• Particularly suitable for light alloy, aluminium and PVC profiles • Easy and quick system to change cutter block's shaft • Full protection of the milling group by means of safety cover with manual closing • Easy transportation on working site • Possibility to perform end milling at 45 ° (optional) • 1,1 Kw (1,5 HP) 3 phase motor - 2800 r.p.m. • Cutter block shaft Ø 32 mm • Horizontal shaft stroke 340 mm • Cutter block max. Ø 140 mm • Working pressure 7 bar • Overall dimensions 67x42x66 cm • Weight 48 kg • Nr 1 cutter block shaft c/w spacer rings with different tickness • Vertical and horizontal clamp with variable positioning • Depth end stop with 6 presetting positions • Automatic lubrication by means of nebulizer • Service spanners
