- Production Machines
- Cutting Machine
- Cut-off saw
- LGF MACCHINE SRL

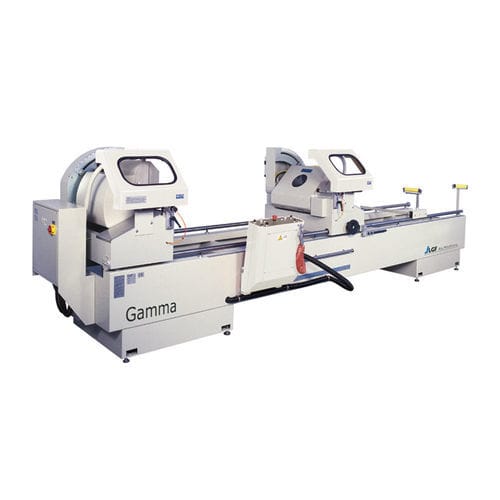

Double-miter saw GAMMA MX SPECIALcut-offfor aluminumfor bars
Add to favorites
Compare this product
Characteristics
- Technology
- cut-off
- Treated material
- for aluminum
- Applications
- for bars
- Operational mode
- semi-automatic
- Other characteristics
- with roller conveyor, double-miter
- Circular saw blade diameter
500 mm, 530 mm, 550 mm
(20 in, 21 in, 22 in)
Description
• Right head displacement by means hand wheel
• Reading of the cutting dimension on high precision metric scale with micrometric adjustment
• Sliding of the moving head by means of ricirculating ball bearings on rectified and tempered guides
• Radial sliding of the sawing group
• Full protection of the sawblades by means of safety hoods with automatic closing
• Pneumatic heads tilting at 90°/+ 45°/22,5°
• Possibilty to mount sawblades Ø 500 - 530 - 550 mm
• Sawblade shaft Ø 30 mm
• 2,2 Kw (3 HP) 3 phase motors - 2800 r.p.m.
• Cutting lenghts 4000/5000/6000 mm
• Working pressure 7 bar
• Overall dimensions 524-624-724x139x155 cm
• Weight 1200 - 1350 - 1500 Kg
Catalogs
No catalogs are available for this product.
See all of LGF MACCHINE SRL‘s catalogs
