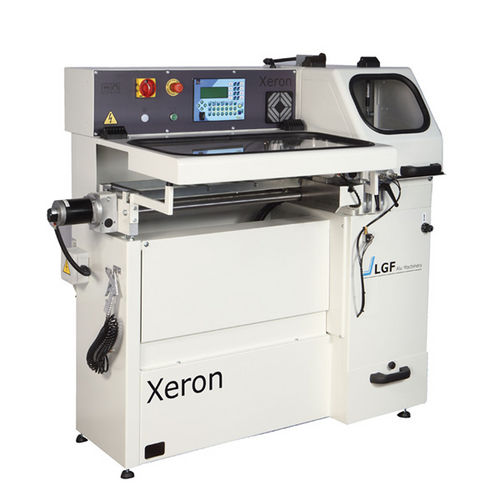

Single-head saw XERON DIGIT - XERON
cut-offfor aluminumsemi-automatic

single-head saw
single-head saw
Add to favorites
Compare this product


Characteristics

Technology
cut-off
Treated material
for aluminum
Operational mode
semi-automatic
Other characteristics
single-head, pneumatic
Circular saw blade diameter

450 mm
(18 in)

Description

• XERON DIGIT • Pendulum movement of the sawing group • Machine equipped with NC unit to set bar lenghts, c/w monochrome screen 120x40 and integrated industrial keyboard • Possibility to perform lenght ramdom cuts • Idro-pneumatic external adjustment of the saw blade feeding • Motorized bar feeding by means of recirculation ball screw • Fully automatic cutting procedure • Full protection safety covers with manual closing • XERON • Pendulum movement of the sawing group • Idro-pneumatic external adjustment of the saw blade feeding • Bar feeding by means of paneumatic cylinder • Manual setting of cutting length by means of hand wheel from 0 to 660mm complete with metric scale and magnifying glass • Fully automatic cutting procedure • Full protection safety covers with manual closing • 2,2,Kw (3 HP) 3 phase motor - 2800 r.p.m. • Working pressure 7 bar • Overall dimansions 85x158x145 cm • Weight 306 Kg
