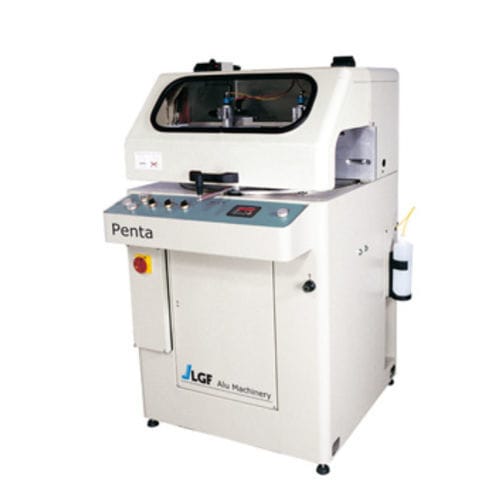

Single-head saw PENTAcut-offhorizontalfor aluminum
Add to favorites
Compare this product
Characteristics
- Technology
- cut-off
- Orientation
- horizontal
- Treated material
- for aluminum
- Operational mode
- semi-automatic
- Other characteristics
- single-head
- Circular saw blade diameter
500 mm, 530 mm, 550 mm
(20 in, 21 in, 22 in)
Description
• Rising of the sawblade by means of oleo-pneumatic cylinder
• Full protection of the sawblade by means of safety cover with manual closing
• Suction hood connection
• Digital display for angled cuts
• Locking of rotating bench by mean of high precision indexed pins at -45°/90°/45°
• Possibility to perfom any intermediate angled cut between 80° left and 80° right, with pneumatic brake locking device
• Possibility to rip from 0 to 100 mm by means of movable rear fence (optional)
• Idro-pneumatic external adjustment of the saw blade feeding
• Possibility to mount sawbldes with Ø 500-530-550 mm
• Sawblade shaft Ø 30 mm
• 2,2, Kw (3 HP) 3 phase motor - 2800 r.p.m.
• Working pressure 7 bar
• Overall dimensions 85x103x145 cm
• Weight 350 kg
• TCT sawblade Ø 500 mm
• Horizontal pneumatic clamps
• Automatic lubrication by means of nebulizer
• Air filter
• Air gun
• Service spanners
