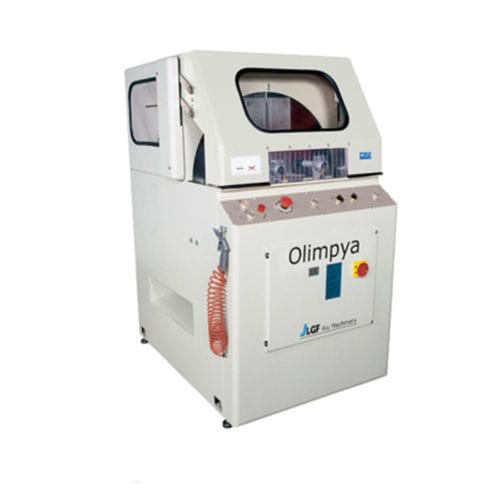

Cut-off saw OLIMPYAfor aluminumsemi-automaticsingle-head
Add to favorites
Compare this product
Characteristics
- Technology
- cut-off
- Treated material
- for aluminum
- Operational mode
- semi-automatic
- Other characteristics
- single-head
- Circular saw blade diameter
500 mm, 530 mm, 550 mm
(20 in, 21 in, 22 in)
Description
• Radial sliding of the sawing group
• Full protection of the sawblade by means of safety cover with automatic closing
• Pneumatic and automatic tilting of the head at -45°/90°/45°
• Possibility to perform cuts at any intermediate degrees from 30° left up to 30° right, with mechanical end stop
• Outfeed of the sawblade by means of oleo-pneumatic cylinder
• Idro-pneumatic external adjustment of the saw blade feeding
• Possibilty to mount sawblades with Ø 500 - 530 - 550 mm
• Sawblade shaft Ø 30 mm
• 2,2 Kw (3 HP) 3 phase motor - 2800 r.p.m.
• Working pressure 7 bar
• Overall dimensions 133x98x156 cm
• Weight 450 kg
Catalogs
olimpya
2 Pages
