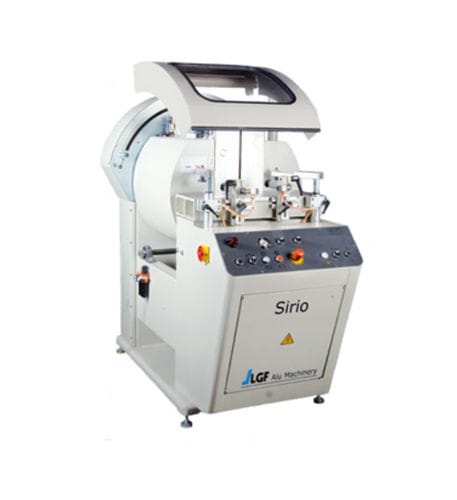

Single-head saw SIRIO

circularfor aluminumsemi-automatic

• Radial sliding of the sawing group • Full protection of the sawblade by means of safety cover with automatic closing • Pneumatic and automatic tilting of the head at -45°/90°/45° • Possibility to perform cuts at any intermediate degrees from -45° a +22,5° with mechanical end stop • Outfeed of the sawblade by means of oleo-pneumatic cylinder • Idro-pneumatic external adjustment of the saw blade feeding • Possibilty to mount sawblades with Ø 500 - 530 - 550 mm • Sawblade shaft Ø 30 mm • 2,2 Kw (3 HP) 3 phase motor - 2800 r.p.m. • Working pressure 7 bar • Overall dimensions 95x151x157 cm • Weight 555 kg • TCT sawblade Ø 500 mm • Horizontal pneumatic clamps • Automatic lubrication by means of nebulizer • Interchangeable aluminium support/base on working bench • Air filter • Air gun • Service spanners
