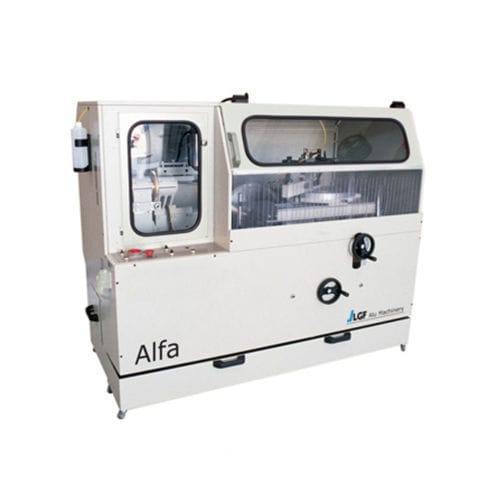

90° fixed angle notching machine ALFA

• Machine totally enclosed • Sliding of the sawing carriage by menas of ricirculating balls bearings on rectified and temperated guides • Clylinder stroke 700mm • Adjustable feeding of the sawing carricage 4-10 mt/min • Blades tilting range +/- 45� by means of hand wheel • Possibility to preform cuts at any intermediate degrees • Adjustable working bench in terms of hight and depth by means of hand wheels • Tilting fence on the working bench at 45°/90°/-45° • Max. profile hight 155mm • Max. profile width 250 mm • Max. depth of cut in horizontal 135 mm • Max. depth of cut in vertical 160 mm • 2,2 Kw (3 HP) self braking motors - 2800 r.p.m. • Sawblade's bore Ø 30 mm • Working pressure 7 bar • Overall dimensions: 110x215x176 cm • Weight: 650 kg
