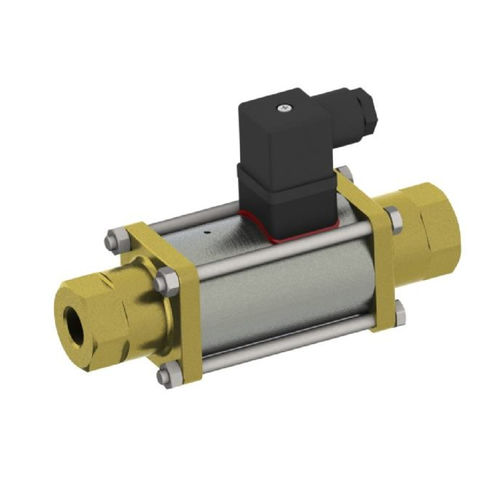

Direct-operated solenoid valve 27 series2-wayNCNO
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 2-way
- Function
- NC, NO
- Medium
- air
- Body
- threaded, flange, brass, stainless steel, IP65
- Process connection
- G 1/4, G 2
- Other characteristics
- switching, coaxial
- DN
Min.: 10 mm
(0.394 in)Max.: 50 mm
(1.969 in)- Voltage
24 V, 230 V
- Temperature
Min.: -10 °C
(14 °F)Max.: 100 °C
(212 °F)- Pressure
Min.: 0 bar
(0 psi)Max.: 100 bar
(1,450.4 psi)
Description
Among the main advantages of the RSG coaxial valves we find the short switching times and their versatility of use, with operating pressures ranging from 0 to 300 bar.
The versions available are coaxial direct operated or external, 2/2 and 3/2 way. Adaptable to various customer needs thanks to a wide choice of collar or flange connections and options with limit switches or mounting brackets.
