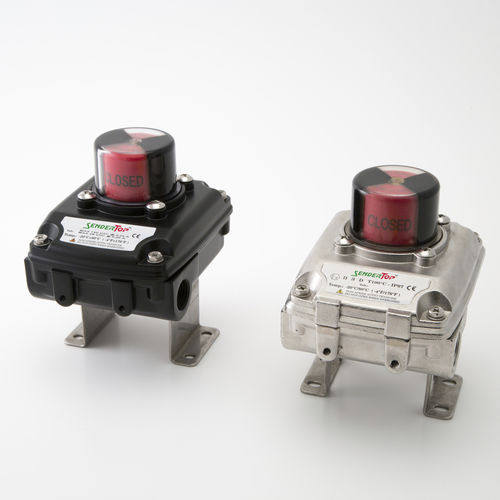

Limit switch box with stainless steel housing ST1

The Limit Switch Box SENDERTOP ST1 series is designed to provide an instant and reliable feedback signal for the position of a valve actuated or anually operated in a safe area. IP67 protection type. Aluminum and S.S. CF8M Enclosure High visibility green / red status indicator. Precise cam adjustment, through spindle system. Terminal block with 8 positions. Conduit entries M20x1.5 or 1/2” NPT-F. Possibility to mount a wide range of limit switches. NAMUR brackets for mounting on actuator 30x80 e 30x130, pinion h. 20mm and 30mm, available on request in painted carbon steel or stainless steel. Switches Mechanical SPDT 3A@250VAC. Mechanical SPDT gold plated 0,1A@30VDC. Magnetic hermetically sealed proximity type SPDT 0,25A@175VDC. Inductives NAMUR, NPN, PNP sensors. Enclosures Low copper content Aluminum with double layer of black epoxy coating. CF8M (AISI-316) Stainless Steel Ambient temperature Standard : -20°C/+80°C (NBR seals) On request : -40°C/+80°C (Silicone seals) ATEX II 3D (zone 22) version on request.
