Compressed air filter-regulator SB10
airpressureprocess

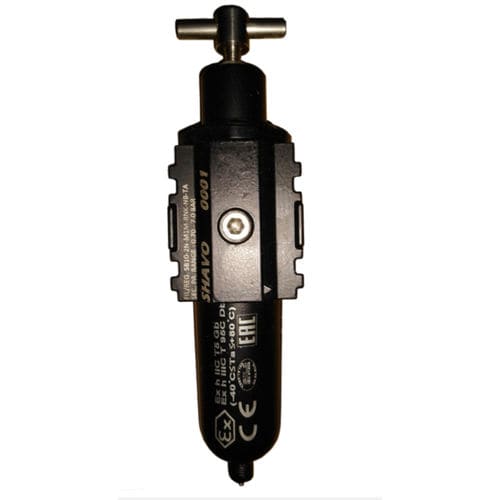

Compressed air filter-regulator - SB10 - LGM ENGINEERING - air / pressure / process

Compressed air filter-regulator - SB10 - LGM ENGINEERING - air / pressure / process - image - 2

Add to favorites

Compare this product

Characteristics

Designed for

compressed air, air

Filtration method

pressure

Applications

process

Material

stainless steel, aluminum

Other characteristics

ATEX, bidirectional

Operating pressure

Min.: 0 bar
(0 psi)

Max.: 17.5 bar
(253.816 psi)

Filtration size

5.4 µm, 25 µm

Flow

Min.: 0 l/min
(0 us gal/min)

Max.: 850 l/min
(224.546 us gal/min)

Fluid temperature

Min.: 0 °C
(32 °F)

Max.: 80 °C
(176 °F)

Description

AIR FILTER REGULATORS & AIR TREATMENT Born from the experience of Shavo Norgren, Shavo products are known for their ease of use and maintenance. The great variety of solutions and results that can be obtained through Shavo applications, make Shavo components the best on the market in terms of value added and conditions. Shavo products are multi-certified as a standard. The SHAVO product range includes: Filter Regulators Filters Volume booster Lock-up valves Unidirectional and bidirectional flow regulators Quick Exhaust valves Shavo's Filter/Regulator combination unit for process control is an efficient space saving design for general applications in compressed air systems where effective contamination filtration, liquid water removal and controlled pressure is required. CE, ATEX, EAC [(CUTR-10) equivalent to GOST R &K] approved. SIL3 capable as per IEC 61508.
