Automatic filter BY-45

oilfor wastewater treatmentfor liquid food products and beverages

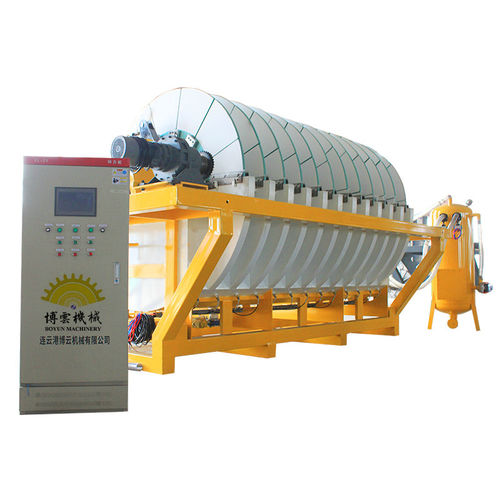

A Ceramic vacuum disc filter is designed to separate liquids from solids for dewatering purposes. The device consists of a rotator, distributor, agitator, scraper, slurry tank, reducer of the main shaft, vacuum pump, filter, ultrasonic equipment, waterway system, electronic control system.In the industry ,filtering means separating solids from liquids through a medium and realizaytion the process of solid-liquid separation. Application: The filter can be widely used in non-ferrous mental, metallurgy, chemical, pharmaceutical, food, environmental protection, thermal power plant, coal treatment, sewage treatment and other industries. Features: Model: BY-45 Brand: BOYUN Place of origin: China Main size(L*W*H):4730 * 3000 * 2860 Weight(T):7.0tons Filter plate mumber: 108 pieces Disk number: 9 circles Filtering area of each circle: 5m2 Installed power: 23.7KW Operating power:15.7KW Warranty: 1 Year After-sales service: Field installation, commissioning and training Package type: Wood case or up to the customer's demands Certificates: ISO9001:2008 Advantages: • Energy saving and high efficiency, higher processing capacity; • Automatic control, automatic feeding, automatic cleaning, highly automation, lower labor cost; • Firmly and durable structure: more than 10 years service life; • Higher quality of products and lower cost of transportation; • Obvious environmental protection effect: reusable, reduction of emissions, conforming to current trend of clean production and environmental protection; Working time 6-12H, cleaning time no less than 1H, the vacuum pressure shall not be less than -0.08MPa, the water pressure no less than 0.4MPa, the pH control in 2-4.
