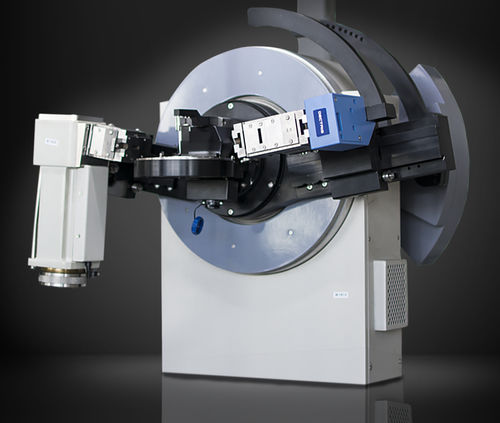

YX-16 Automatic X-Ray Orientation Splice Instrument
Functions: It is used for orientation splice of all kinds of crystal ingot, automatically scanning crystal orientation and realize the crystal bar splice for positive crystal orientation and slanting crystal orientation according to customer requirement, it is also can be matched with nulti thread cutter, with high automatic ability and convenient operation, high splice accuracy.
Structure
Applies with double x-ray system and matching double angle adjustment system, can automatically scan peak-searching and finish orientation process, the peak value parameters will be shown timely. It can realize the splice of positive orientation, but also can finsh slanting orientation splice which was set in advance. It can highly improves crystal splice accuracy. The model of unit can splice crystal bars with diamter of 2 to 8 inch, length of 5 to 500mm, it can also splice N nos crystal bar on one fitch. The angle read ouyt of double axis adopts international common method, with degree as its displace unit ( 0.00 degress), it also shows by donestic way ( degree, minute, second) according to customer requirement.
