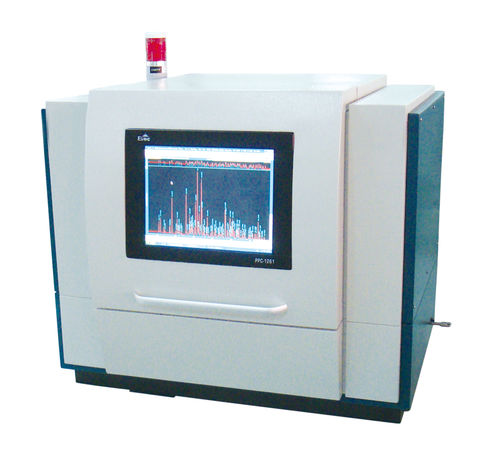

X-ray diffractometer JF2500

Main Technical Parameter 1. X-Ray Tube (1) X ray tube type: ceramic or glass tube is optional; Target material with European standard interchangeable; (2) the type of target: Cu, Fe, Co, Cr, Mo, Ti, W is optional; (3) the factory standard configuration: Cu; (4) size: 1 x 10 mm; (5) the rated power: 2.4 KW. 2. X Ray high frequency high voltage generator (1) the X-ray tube voltage: 10 to 30 kV or 10 to 40 kV (2) X-ray tube current: 5 to 20 mA, or 5-30 mA (3) the filament current: DC: 0-3 A. (4) stability: plus or minus 0.001% (10%) power supply voltage fluctuation; (5) the maximum output power: 600 w 3. Vertical goniometer (1) the goniometer radius: 150 mm (2) scanning mode: theta / 2 theta linkage way; (3) 2 theta scanning range: - 3 ° to 150 °. (4) 2 theta measuring range: + 2 ° to 150 °. (5) the location speed: 1000 ° / min (2 theta); (6) scanning speed: 0.01-100 ° / min; (7) 2 theta minimum stepper Angle: 0.0002 °. Measurement accuracy (8) : 0.001 °; (9) 2 theta Angle repeatability: 0.0005 °. (10) :Slit Divergence slit (DS) : theta axis linkage variable slits (the biggest opening 4.2 °); The scattering slit (SS) : 0.5 ° / 1 ° / 2 ° replaceable; Receiving slit (RS) : 0.1 mm / 0.2 mm / 0.3 mm / 0.4 mm can be replaced; Sola slit: + / - 2.5 ° (11) X ray out Angle: 6 °
