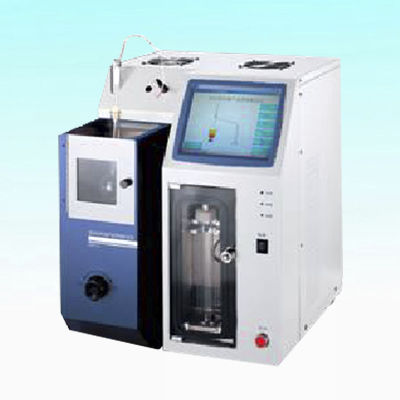

Distillation testing device HK-6536E

automaticfor the petroleum industry

HK-6536E Full Automatic Distillation Tester OverView HK-6536E Full Automatic Distillation Tester conforms to ASTM D86 and ASTM D850. It is suitable for the measurement of natural gasoline (stable light hydrocarbons), motor gasoline, aviation gasoline, jet fuel, spécial fuels, spécial boiling solvents, naphtha, petroleum spirits, kerosene, diesel, gasoil, distillate fuels and similar petroleum products. Operator is just supposed to add sample to the flask, then placedthe flask to tester and calledthe corresponding program to start the test, no need other manually operations Features 1. - Dual Controls, hardware System adopts IPC and SCM 2. - Multi interfaces, RS-232, USB and RJ-45, etc. can be connected to the LIMS System, can connect to the LAN to browse the Internet. 3. - Color display and equipped with mouse and keyboard 4. - Semiconductor réfrigération, imported éléments 5. - Multi calibration functions, System software provides steam température, barometric pressure, cylinder volume, receiving chamber température calibration, etc. 6. - Software meets different requirements for the distillation 7. - Self-tuning calibration Technical Parameters 1. - Applicable Standard ASTM D86, ASTM D850 ,GB/T6536, GB/T 7534,ISO3405 2. - Measuring range: Ambient~400 °C , Accuracy: 0.1°C 3. - Rated voltage AC220V, 50Hz 4. - Total power: 2500W , Heating power: 1000W 5. - Liquid level maximum tracking ability: 12ml/min, Volume measurement resolution: 0.1ml 6. - Cooling bath, receiving chamber température: 0~60 °C, controllable freely 7. - Cooling mode: Semi-conductor cooling 8. - Ambient température: 0lC~40oC 9. - Storage température: -20°C~50°C 10. - Absolute safe température: 400°C
