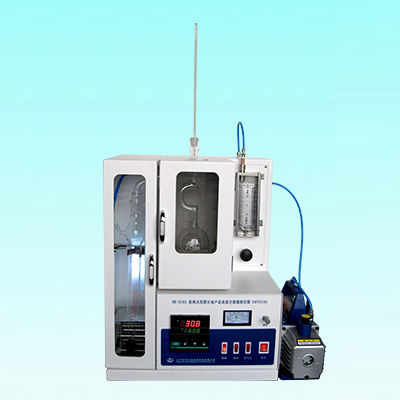

Vacuum testing device HK-0165

distillationmanual

HK-0165 Vacuum Distillation Apparatus OverView HK-0165 Vacuum Distillation Apparatus conforms to the SH/T 0165 Standard Test Method for Distillation of Petroleum Products at Reduced Pressure. It is used for measuring at reduced pressures, of the range of boiling points for petroleum products and biodiesel that can be partially or completely vaporized at a maximum liquid température of 400°C. Features 1. - The apparatus adopts quartz tube electric furnace heating, ant oxidative, corrosion résistant, high thermal efficiency. O il splashing prevented. 2. - Thermoregulation method adopts stepless voltage régulation by solid-state voltage regulator. 3. - Use air bath as the cylinder bath, corrosion prevented. 4. - Measuring cylinder slot adopts stainless Steel material, corrosion prevented. 5. - Digital display the température of bath, high précision of température control. 6. - The apparatus is equipped with vacuum pump, it features small size ,light weight, low noise, easy and reliable operation7.Easy operation with rational construction and attractive appearance. Technical Parameters 1. - Rated voltage: AC220V±10% 50Hz 2. - Heating power: 0~1000W continuously adjustable 3. - Thermo régulation: Voltage régulation by solid-state voltage regulator 4. - Rangesof température: Stepless control: room temperature~90°C 5. - Mode of température control: Digital display controller 6. - Accuracy of température control : ±3°C 7. - Electric furnace lift: Manual adjustment 8. - Flask: 250mlMeasuring cylinder: 100ml 9. - Ambient requirements: Température: 10~40°C; Humidity<85% 10. - Ned dimension: 436 X 335 X 555mm, 16kg
