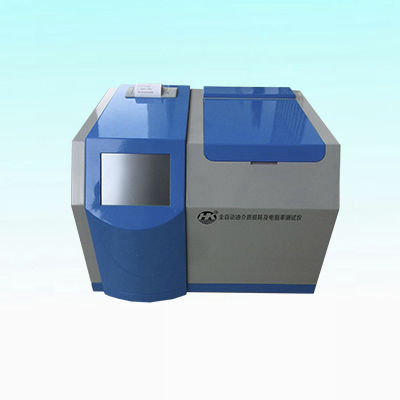

Dissipation factor tester HK-6100

insulation oil

HK-6100 Dissipation Factor Tester OverView HK-6100 conforms to ASTM D924 Standard Test Method for Dissipation Factor for Power Factor) and Relative Permittivity (Dielectric Constant) of Electrical Insulating Liquids. This apparatus is used to measure the dielectric losses in an electrical insulating liquid when used in an alternating electricfield and of the energy dissipated as heat. A low dissipation factor or power factor indicates low ac dielectric losses. Dissipation factor or power factor may be useful as a means of quality control. and as an indication of changes in quality resulting from contamination and détérioration in service or as a resuit of handling. Features 1. - Oil cup adopts three electrode structure, electrode sapcing:2mm 2. - The apparatus adopts medium frequency induction heating.PID température control.lt features homogeneous heating. fast speed and convenient to control. 3. - SF6 Three electrode type pneumatic capacitance as the standard capacitance.lts dielectric loss and capacitance wiII not be effected by the ambient température and humidity.so as to guarantee the accuracy 4. - Perfect protection function.when there is overvoltage. over current and high voltage short circuit, the apparatus wi II eut off the current immediately and alert.lf the température exceeds 120=C.relay releases and stops heating 5. - Convenient to set the para met ers. température range :0 ~ 1255C.AC range: 500 ~ 2200V.DC range:0 ~ 500V 6. - The appratus adopts LCD screen. it features baacxlight and dear display 7. - Equiped with real time clock. test date and time can be recored.displayed and printed as the test resuit
