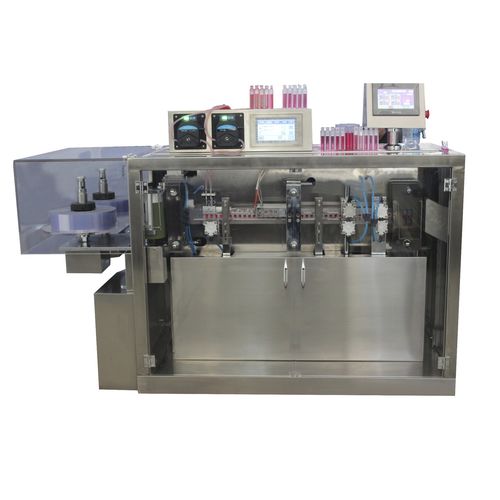

Automatic filling and sealing machine DSM(P2)

ampoulebottleliquids

Name: DSM(P2) Plastic ampoule filling sealing machine It is for oral liquid, pesticide, perfume, cosmetic and pulp food category,etc pplication: Oral liquid,liquid,pesticide,perfume,cosmetics and pulp food category ,etc Characteristics : 1.Controlled by PLC , the frequency conversion in finitely variable speeds. 2. All 6 processes from spreading roll, Ampoule bottle forming, filling , sealing the end , printing serial numbers, cutting the end, cutting apart, controlled by programming. 3. The computer human interface has simple and clear operation. 4. The filling head don’t drop. Leak, riding bubbled and spill over. 5. All are made of high-quality stainless steel, accord with the standard GMP. 6. Mostly pneumatic components and sirings adopt inward fittings. 7. Automatic and mechanical bottling, precise calculation and limited deflection. Technical parameter : Max forming depth 12mm Cutting frequency 0-50 time 2 filling head 0-100 time 5 filling head Packing material PVC/PE(0.2-0.4)X120mm Capacity 2-25ml/Ampoule Power 3.5Kw Voltage 220/380V/50Hz Whole machine’s weight 350Kg Outer size L x W x H(mm) 1800x800x1400(mm)
