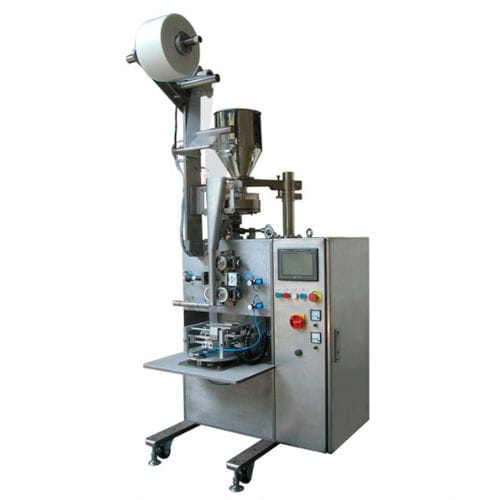

Automatic packing machine DXDC50

verticalbagtea

Name: DXDC50 Tea bag packing machine it could use the non-woven fabrics and nylon filter fabric to produce pyramid bags Model DXDC50 is our newest pyramid shape tea bag packing machine, and it could use the non-woven fabrics and nylon filter fabric to produce pyramid bags which have good perviousness and perspectivity. It is used for the packing of tea leaves, such as green tea, black tea, etc. And it is also used for the pyramid bag or flat bag packing of food spice whose taste exudes through bags. Main technical data: 01 Speed: 50 bags/minute 02 Length of pyramid bag: 50mm~80mm 03 Size of flat bag: 60mm~90mm (W)* 40mm~80 mm (L) 04 Tea bag capacity : up to 1.5g~10g 05 Packing materials: Food standard non-woven fabrics and nylon filter fabric 06 Width of material’s roll,140mm,160mm,(Option:120mm ,180 mm) 07 Power supply: AC 220V 50HZ 08 Power: 1.2KW 09 Air Pressure: 0.6MPa 10 Air consumption: 100L/min 11.Net weight:420KG 12.Gross weight:550KG 13. Overall dimensions: 1.84m x 1.13m x 0.89m 14. Carton dimensions: 2.03m x 1.19m x 1.09m Packing material: P.E./Non-woven fabrics / Nylon filter fabric
