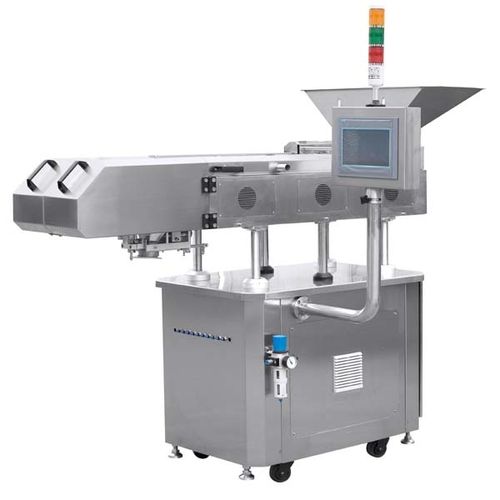

Tablet counting machine BCM-8

high-speed

Name: BCM-8-channel capsule/tablet counting machine It is for tablet and capsule filling counting into bottle packing machine Basic machine equipment: 01. 8-channel counting machine with Microcomputer System provides high accuracy operation. 02. Equipped with Premium Infrared Sensor ( Made in Germany) to increase the infrared intensity automatically for 100% counting accuracy . 03. Capacity is up to 6500pcs per minute (Dia. 5mm Tablet) . 04. Suitable for counting any sizes and shapes of capsules, softgels, tablets, round pills and other solid materials without parts change over. 05. Maximum counting amount is up to 9,999 pcs per container. 06. Equipped with a buffer bucket to blockade the capsules/tablets fallings while containers are moving. This design allows the vibrating feeder continuous running. 07. Equipped with a perforated screen to trap dust or tablet chip by attaching a vacuum source. 08. The counter has three-stage vibrators to infeed tablets or capsules; vibrating frequency adjustable for quick and stable infeeding 09. Bottles are positioned and changed by air cylinder to ensure accuracy positioning prior to filling to avoid spillage. 10. Button Control Type Screen shows the running condition as well as the self-detection system 11. 30 sets of parameter settings contribute to the production switch friendly and quickly. 12. Easy to dismantle with a minimum amount of parts for clean up. 13. No high-speed moving motion, thus no wearing parts. 14.All product contact parts are made of SUS 304 or SUS 316 15.Accurate counting system, No bottle—No fill! 16. Meets CGMP requirement.
