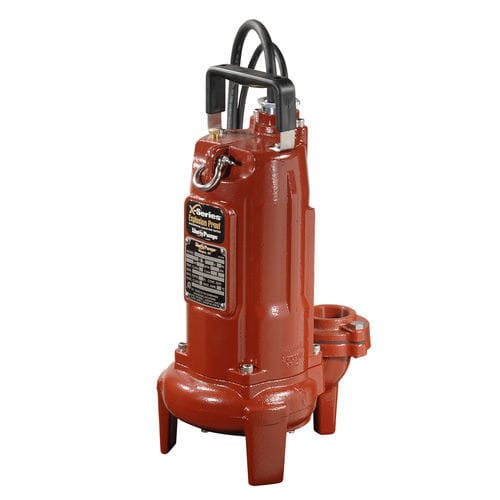

Impeller pump XLE100 seriesfor wastewaterelectricsubmersible
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- for wastewater
- Operation
- electric
- Priming
- submersible
- Mobility
- stationary
- Domain
- industrial
- Applications
- discharge, handling, sewage
- Material
- cast iron
- Protection level
- explosion-proof
- Other characteristics
- open
- Flow
Min.: 0 us gal/min
(0 l/min)Max.: 190 us gal/min
(719.22824 l/min)- Head
Min.: 0'00"
(0 m)Max.: 43'00"
(13.11 m)- Power
1 ch
(1 hp)- Fluid temperature
40 °C
(104 °F)- Length
233 mm
(9 in)- Width
333 mm
(13.11 in)- Height
554 mm
(21.81 in)- Weight
102 kg
(224.87 lb)
Description
Liberty Pumps XLE100-Series cast iron sewage pump is an explosion-proof pump for use in hazardous locations. It is Class 1, Division 1 Groups C & D and Class 1, Zone 1 and Group IIA and IIB certified. Providing a dual 2" or 3" discharge, 2" solids handling, and 2 vane semi-open cast iron impeller. Abronze impeller is optional for this model.
