Centrifugal pump LCU-20 seriescondensateelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- condensate
- Operation
- electric
- Mobility
- stationary
- Domain
- industrial
- Applications
- discharge
- Material
- stainless steel, ABS
- Voltage
- 230 V, 115 V
- Other characteristics
- wall
- Head
Max.: 20'00"
(6.1 m)Min.: 0'00"
(0 m)- Length
11 in
- Width
5 in
- Height
5 in, 7 in
- Weight
4.5 lb, 5 lb, 6 lb, 6.5 lb
(2.04 kg, 2.27 kg, 2.72 kg, 2.95 kg)
Description

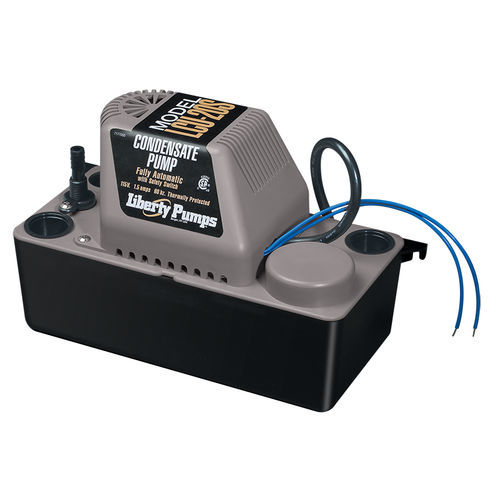

The LCU-SeriesCondensate Pumps from Liberty Pumps are designed to handle removal of condensate from high efficiency furnaces, A/C equipment, dehumidifiers, ice machines and other applications producing condensate. Model LCU-20S and LCU220S come with a safety switch. All Liberty Pumps condensate pumps come with a three year warranty.
LCU-Series Features
High impact ABS tank
Wall mounts
Three intake holes
3/8" O.D. outlet
Barbed and threaded discharge connection
Removable check valve
Stainless steel shaft
6' power cord with ground
Thermally protected
Fully automatic
Quiet operation
Built in safety switch (LCU-20S, LCU-20ST and LCU220S only)
Maximum fluid temperature for LCU models: 150 degrees Fahrenheit
Models ending with a "T" suffix include 20' of clear 3/8" tubing
