Aluminum grating BP-Ü
steelstainless steelplatform

Aluminum grating - BP-Ü - Lichtgitter GmbH - steel / stainless steel / platform
Aluminum grating - BP-Ü - Lichtgitter GmbH - steel / stainless steel / platform
Aluminum grating - BP-Ü - Lichtgitter GmbH - steel / stainless steel / platform - image - 2
Aluminum grating - BP-Ü - Lichtgitter GmbH - steel / stainless steel / platform - image - 3
Add to favorites
Compare this product


Characteristics

Material
aluminum, steel, stainless steel
Product applications
platform, for passengers
Width

150 mm, 200 mm, 250 mm, 300 mm, 400 mm
(5.9 in, 7.9 in, 9.8 in, 11.8 in, 15.7 in)

Description

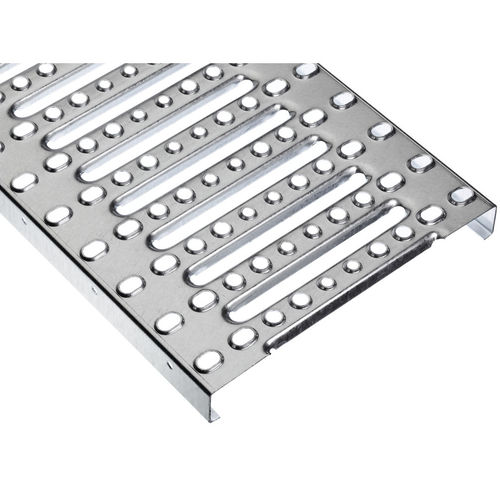

Perforated metal planks, type BP-UE “parallel, ueberhoeht”, are characterized by the highest slip resistance class, their smooth line profiling and high loading capacity. For this reason this type is frequently used in slippery areas and where stringent demands are made on load bearing capacity. Material - Steel S235JR: 1,5 mm, 2,0 mm, 2,5 mm Stainless Steel: 1,5 mm, 2,0 mm Aluminium: 2,0 mm, 2,5 mm Surface treattment - Steel: untreated, hot-dip galvanized, pre-galvanized Stainless Steel: untreated, pickled Aluminium: untreated, pickled, anodized Free cross section - max ~ 27,2% Width - 150 mm, 200 mm, 250 mm, 300 mm, 400 mm (other widths on request) Height - 30 mm, 50 mm, 75 mm, 100 mm, 150 mm (corresponding to width and statical specification; other heights on request) Ball proof - Ø 20 mm (ball with Ø 20 mm can´t fall through / 20 mm ball proof) Serration - R13 / V10 Longitudinal grid - 125 mm (62,5 mm) Production length - max. 10 m, depending on transport limited
