Aluminum grating BN-O33 series
steelstainless steelperforated sheet metal

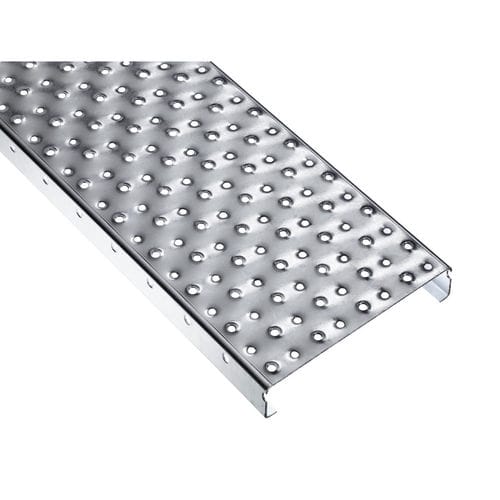

Aluminum grating - BN-O33 series - Lichtgitter GmbH - steel / stainless steel / perforated sheet metal
Aluminum grating - BN-O33 series - Lichtgitter GmbH - steel / stainless steel / perforated sheet metal
Aluminum grating - BN-O33 series - Lichtgitter GmbH - steel / stainless steel / perforated sheet metal - image - 2
Aluminum grating - BN-O33 series - Lichtgitter GmbH - steel / stainless steel / perforated sheet metal - image - 3
Add to favorites
Compare this product


Characteristics

Material
aluminum, steel, stainless steel, perforated sheet metal
Product applications
for floor coverings, for passengers
Width

150 mm, 200 mm, 250 mm, 300 mm, 330 mm
(5.9 in, 7.9 in, 9.8 in, 11.8 in, 13 in)

Description

The perforated metal planks, type BN-O33 “Noppe, offen” combines top and bottom pressed nubs with a hole diameter of 8 mm: This provides excellent stability and drain holes for a good drainage effect. In combination with the profile BN-O33vi for steps with vi-nosing or the closed profile BN-G33 it results in many applications and variations. Material - Steel S235JR: 2,0 mm, 2,5 mm Stainless Steel: 1,5 mm, 2,0 mm Aluminium: 2,0 mm, 2,5 mm Surface treatment - Steel: untreated, hot-dip galvanized, pre-galvanized Stainless Steel: untreated, pickled Aluminium: untreated, pickled, anodized Free cross section - max. ~ 5,0% Width - 150 mm, 200 mm, 250 mm, 300 mm, 330 mm (other widths on request) Height - 30 mm, 50 mm, 75 mm, 100 mm, 150 mm (corresponding to width and statical specification; other widths on request) Ball proof - Ø 10 mm (a Ø 10 mm ball don´t fall through / 10 mm ball proof) Serration - R11 / V10 (Steel, hot-dip galvanized IFA 1504066) Longitudinal grid - 133,33 mm (66,66 mm) Production lenght - max. 10 m, depending on transport limietd

Catalogs
